| ब्रांड नाम: | DLX |
| मॉडल नंबर: | इनकोनेल 617 प्लेट |
| MOQ: | 5 |
| भुगतान की शर्तें: | एल/सी, टी/टी, वेस्टर्न यूनियन |
| आपूर्ति की योग्यता: | प्रति माह 500 टन |

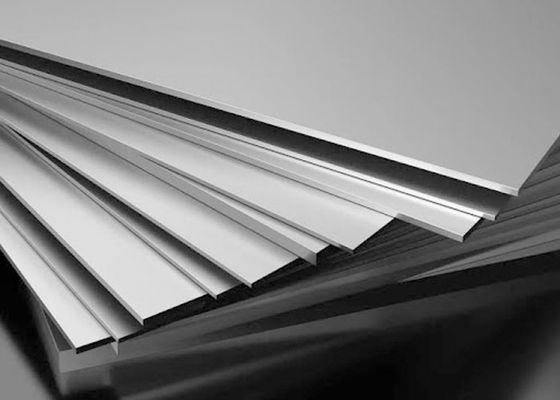

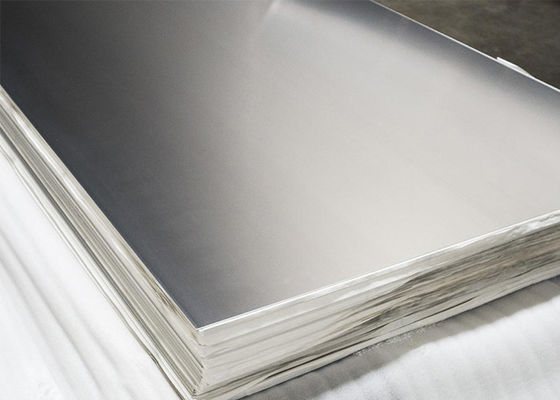

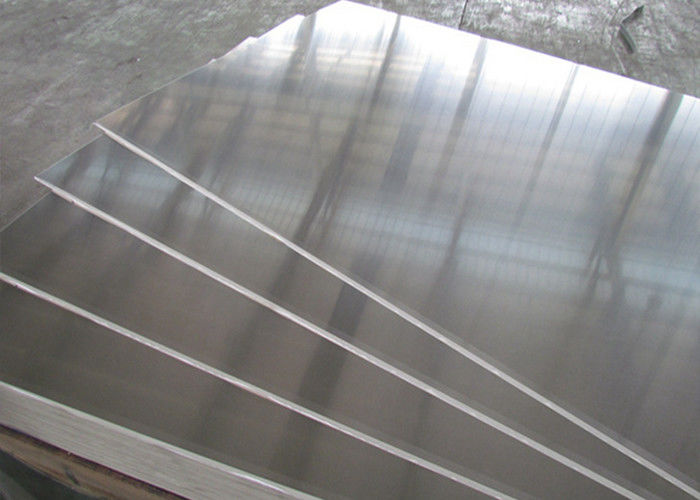

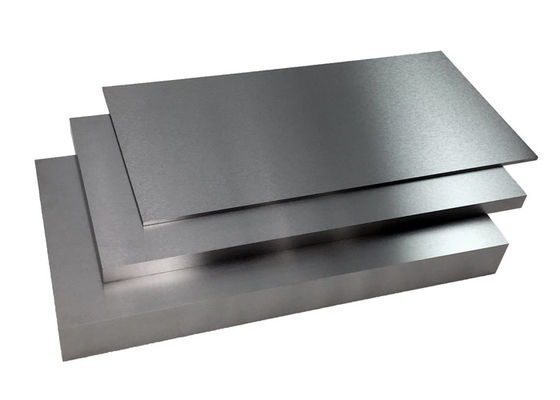

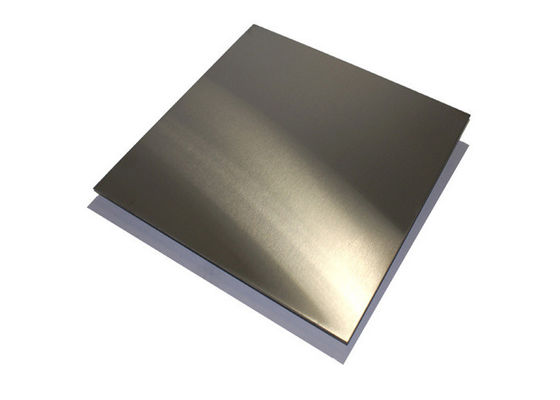

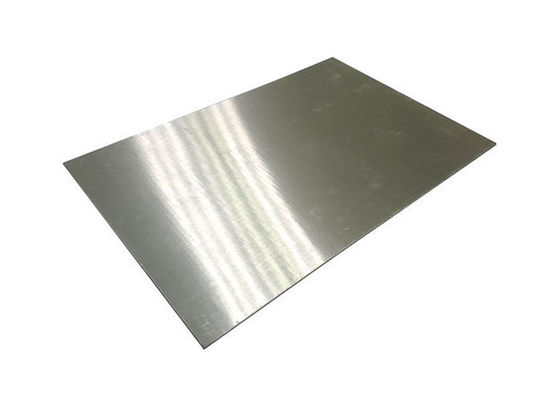

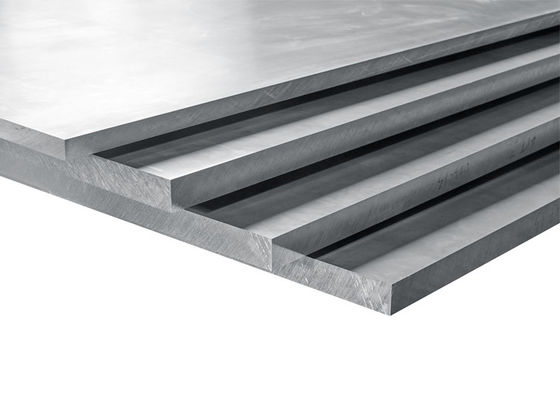

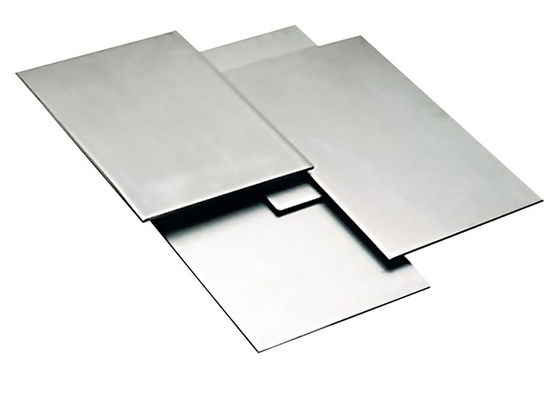

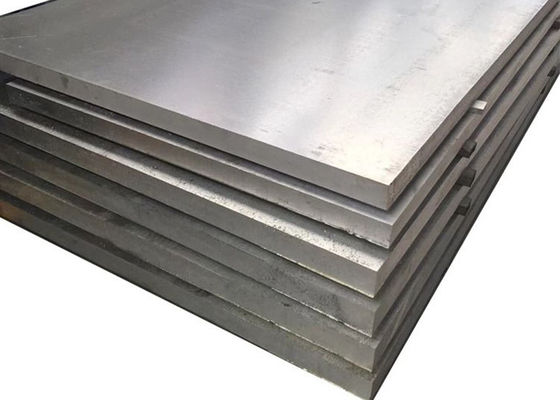

Inconel 617 Plate is a solid-solution, nickel-chromium-cobalt-molydenum alloy with an exceptional combination of high-temperature strength and oxidation resistance. The alloy also has excellent resistance to a wide range of corrosive environment, and it is readily formed and welded by conventional techniques.
The high nickel and chromium contents make the alloy resistant to a variety of both reducing and oxidizing media. The aluminum, in conjunction with the chromium, provides oxidation resistance at high temperatures. Solid-solution strengthening is imparted by the cobalt and molydenum.
| UNS Designation | Inconel Alloy | Nickel | Cromium | Cobalt | Molybdenum | Aluminium | Carbon | Iron | Manganese | Silicon | Sulfur | Titanium | Copper | Boron |
| N06617 | 617 | 44.5 min. | 20.0 - 24.0 | 10.00 - 15.00 | 8.0 -10.0 | 0.8-1.5 | 0.05 -0.15 | 3.0max | 1.0 max. | 3.0max | 0.015 max. | 0.6 max | 0.5 max. | 0.006max |
The combination of high strength and oxidation resistance at temperatures over 1800°F makes inconel 617 plate an attractive material for such components as ducting, combustion cans, and transition liner in both aircraft, and land based gas turbines. Because of its resistance to high-temperature corrosion, the alloy is used for catalyst-grid supports in the production of nitric acid, for heat-treating baskets, and for reduction boats in the refining of molybdenum. Inconel 617 plate also offers attractive properties for components of power-generating plants, both fossil-fueled and nuclear
| AMS Number | Alloy | Type | UNS | Cross Ref. Spec | Misc./Shape | |
|---|---|---|---|---|---|---|
| AMS 5887 Bar | Inconel 617 | Nickel | N06617 | - | Bar | |
| AMS 5887 Custom Tube | Inconel 617 | Nickel | N06617 | - | Custom Tube | |
| AMS 5887 Forging | Inconel 617 | Nickel | N06617 | - | Forging | |
| AMS 5887 Ring | Inconel 617 | Nickel | N06617 | - | Ring | |
| AMS 5888 | Inconel 617 | Nickel | N06617 | - | Plate | |
| AMS 5889 Sheet | Inconel 617 | Nickel | N06617 | - | Sheet | |
| AMS 5889 Strip | Inconel 617 | Nickel | N06617 | - | Strip | |
